W11-10*3200 Hydraulic Symmetrical Steel Plate Rolling Machine 5.5m/min

  • 1
  • 2

Brand Name : ZTIC

Model Number : Metallurgy Machine

Certification : ISO/CE

Place of Origin : Henan, China

MOQ : 1 set

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 300 sets per year

Delivery Time : 30 days

Packaging Details : Standard shipping packaging

Product name : Plate Rolling Machine

Upper roll diameter : 273mm

Maximum roll plate thickness : 10mm

Maximum roll board width : 3300mm

Type : Hydraulic Plate Rolling Machine

Warranty : 12 months

Quality : High quality

Classification : Metallurgy Machine

Contact Now

W11-10*3200 Hydraulic Three-Roll Symmetrical Plate Rolling Machine

Ⅰ.Technical parameters of Hydraulic Three-Roll Symmetrical Plate Rolling Machine of Metallurgy Machine

Model No. W11-10*2500
Maximum roll plate thickness (mm) 10
Maximum roll board width (mm) 3300
Upper roll diameter (mm) 273
Lower roll diameter (mm) 245
Hydraulic motor (Kw) 5.5
Auxiliary motor power (Kw) -
Sheet yield limit (MPa) 245
Main drive motor power (Kw) 15
Reel speed (m/min) 5.5
Main reducer JZQ400

Ⅱ. Rolling principle of Hydraulic Three-Roll Symmetrical Plate Rolling Machine of Metallurgy Machine

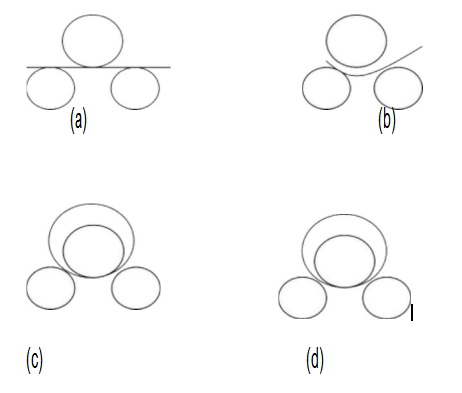

The structure of this machine is three rolls symmetrical. The upper roller moves vertically up and down in the symmetrical position of the center of the two lower rollers, which is obtained by the hydraulic oil in the hydraulic cylinder acting on the piston. The two lower rollers rotate, and the output gear of the reducer meshes with the lower roller gear to realize the walking of the plate. When the lower pressure of the upper roll exceeds the yield limit of the material, the rolled material will be deformed. The deformation process is shown as follows:

W11-10*3200 Hydraulic Symmetrical Steel Plate Rolling Machine 5.5m/min

The above rolling process is for reference only.

Ⅲ. Fault and the solution of Hydraulic Three-Roll Symmetrical Plate Rolling Machine of Metallurgy Machine

No. Fault symptom

Possible cause

Solution
1 Motor shutdown

Overload

Out-of-phase

Reduces down pressure on the upper roll

Maintenance
2 The workpiece does not go

Motor not running

There is oil dirty in the plate or roll body

Triangle belt over loose

Check the line, motor

Removing oil stains

Adjust the tension of the triangle belt
3 Excessive fracture of the upper roller journal

Overload, excessive pressure

Violation of operating rules

Pay attention to the amount of pressure

Correct operation
4 The cylinder is not working

The hydraulic motor does not rotate (or the direction is wrong) the hydraulic oil is too little

The relief valve damping hole is blocked

Check motor wiring or steering

Fill with hydraulic fluid

Check whether the filter is blocked and remove the damping hole
5 The two ends of the winding workpiece have different radians

The upper roller height is not the same

There are foreign bodies on both sides of the rolling workpiece, welding slag, etc

The ID of the digital display table is incorrect

Operate the solenoid valve separately

Remove foreign matter and welding slag

Adjust the number display table
6

Couldn't get the slider out

Reverse the slide and it won't fall

It's not in the right position

The down roll doesn't work

Adjust

Adjust
