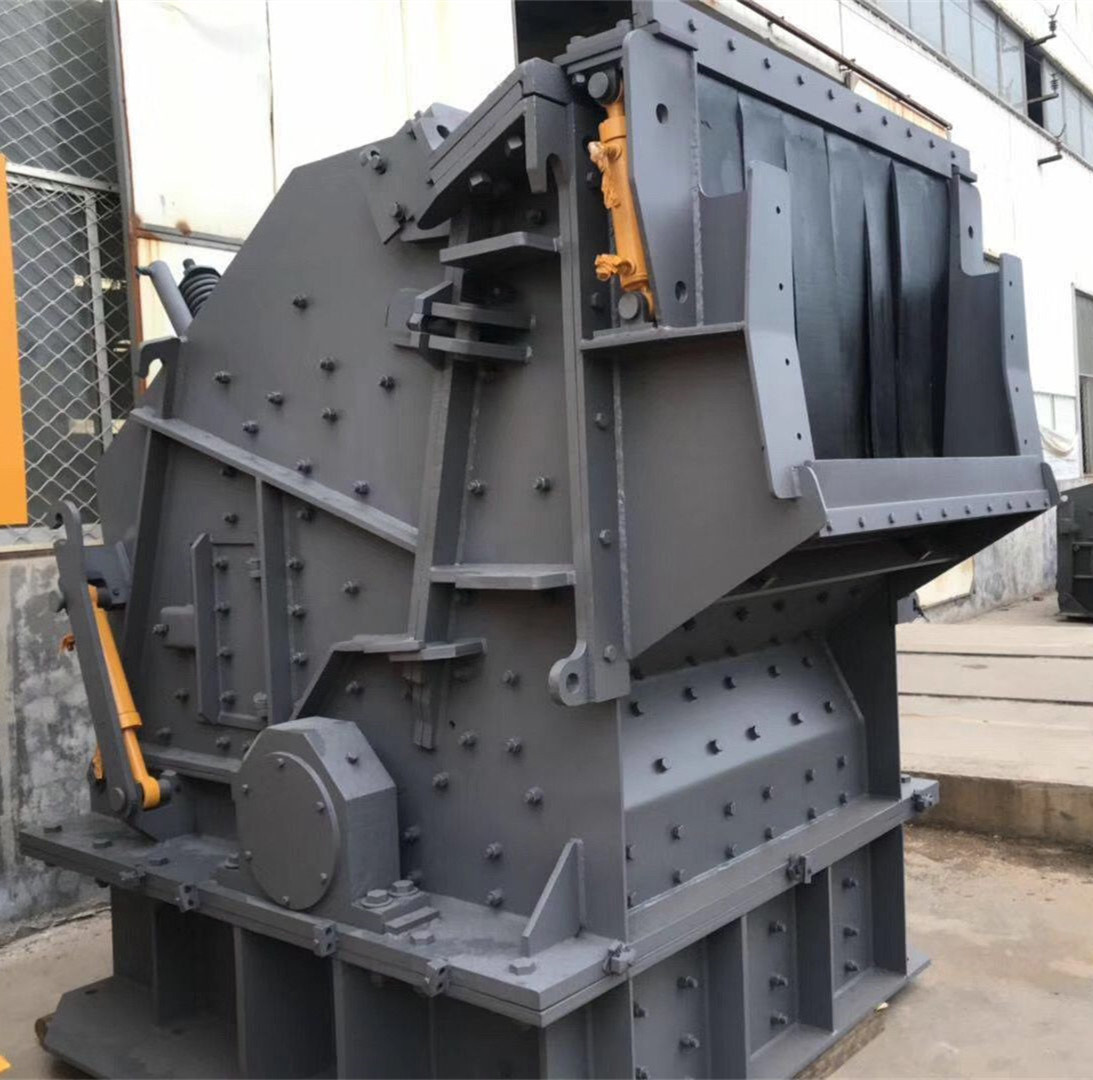

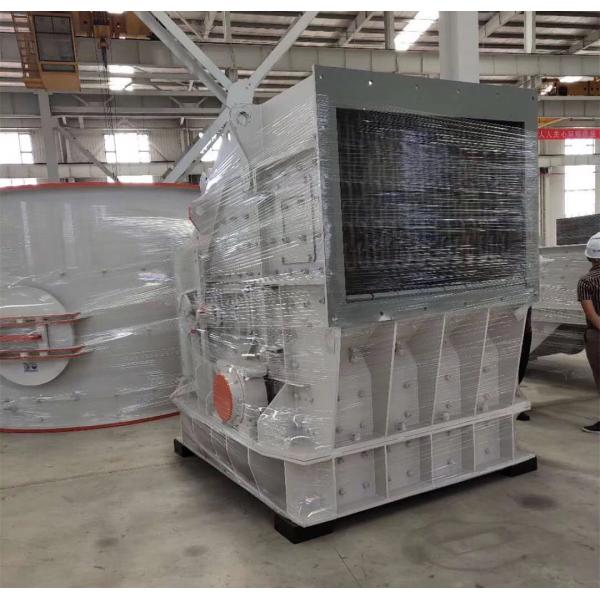

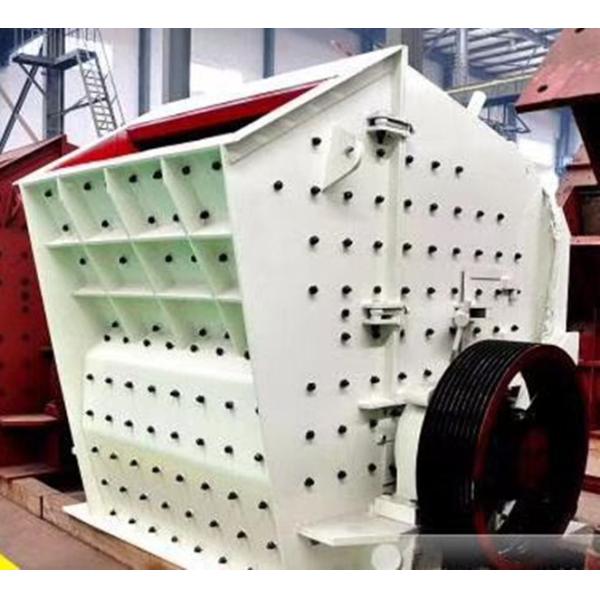

Impact crusher is a new type of high-efficiency crushing machine with the features of small size, simple structure, large crushing ratio.
Features:
-
- Seamless link, easy repair, low cost, reliable operation.
- High impact resistance, wear resistance, big impact force.
- Low wear rate, high comprehensive benefits.
Technical Parameters Of Impact Crusher
| Model | Specifications
(mm) | Feed opening
(mm) | Max.feeding side length
(mm) | Capacity
(t/h) | Power
(kw) | Total weight
(t) | Dimensions
(L×W×H)
(mm) |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 37-45 | 12 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 45-55 | 15 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 300-550 | 315-400 | 50.6 | 3959×3564×3330 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 700 | 600-800 | 630-710 | 83.21 | 4400×3866×4009 |
Impact crusher can adjust the discharge particle size in a variety of ways, such as adjusting the rotor speed, adjusting the gap between the impact plate and the grinding chamber.Clearance adjustment can be mechanically or hydraulically adjusted, and clearance adjustment can be easily accomplished by local operation of the button or the range control system with the hydraulic adjustment system.
Four, wearing parts of small wear, high metal utilization rate
The wear of the plate hammer of the impact stone breaker only appears on the side facing the material.When the rotor speed is normal, the feed will fall to the plate hammer surface (hitting surface), and the back and side of the plate hammer will not be worn.There is very little wear even on the material side.And the bottom grinding rod is easy to replace.The metal utilization rate of plate hammer of impact crusher can be as high as 45%-48%.
Five, impact crusher spare parts replacement is simple, maintenance costs are reduced
