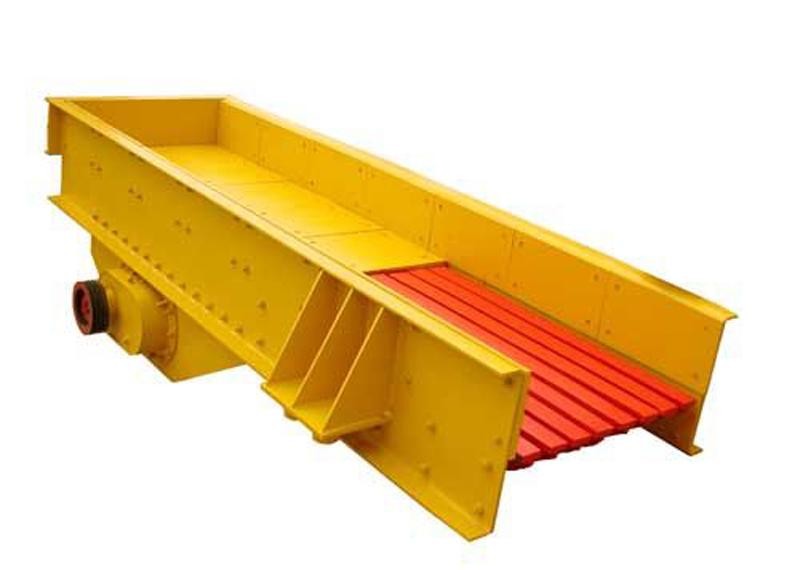

Vibrating Feeder large feeding capacity Small volume low energy consumption
Vibrating Feeder Features:
High efficiency and large feeding capacity
Small volume and compact structure
Low noise and low energy consumption
In the sand and stone production line, vibratory feeder can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. Vibrating feeder is also named vibratory feeder, vibrating grizzly feeder, feed grizzly, ore vibrating feeder. Vibrating feeder is a kind of linear direction feeding machine with the features of smooth vibration, reliable operation and long service life. It is widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.
Vibrating feeder works continously and evenly. The particles and powdery materials from hopper will be sent to the screens and crushing machines by belt conveyer or bucket elevator. Stepless regulation is available for vibrating feeder to automatically and centrally control the feeding volume.
Working Principle of Vibrating Feeder
The ore vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through vibration, the materials will slip and sling on the funnel, moving forward, and when the materials pass the screening part, smaller parts will fall down, thus avoiding the further crushing, and therefore, screening purpose can be reached.
Technical Parameters of Vibrating Feeder
| Model | Max. feeding (mm) | Pocessing capacity (t/h) | Motor power (kw) | Obliquity of material trough (o) | Total weight (kg) | Trough size (mm) | Dimensions (L*W*H) (mm) |
| GZD-650*2300 | 300 | 80 | 1.1*2 | 10 | 2798 | 650*2300 | 2300*1360*780 |
| GZD-750*2500 | 350 | 100 | 1.1*2 | 10 | 3260 | 750*2500 | 2500*1460*780 |
| GZD-850*3000 | 400 | 120 | 3*2 | 10 | 3607 | 850*3000 | 3110*1800*1600 |
| GZD-1000*3600 | 500 | 150 | 5.5*2 | 5 | 3895 | 1000*3600 | 3850*1950*1630 |
| GZD-1100*4200 | 580 | 240 | 5.5*2 | 5 | 4170 | 1100*4200 | 4400*2050*1660 |
| GZD-1100*4900 | 580 | 280 | 7.5*2 | 5 | 4520 | 4900*1100 | 5200*2050*1700 |
| GZD-1300*4900 | 650 | 450 | 11*2 | 5 | 5200 | 4900*1300 | 5200*2350*1750 |
| GZD-1500*5600 | 1050 | 450-800 | 12*2 | 10 | 7500 | 1500*5600 | 5700*2000*1750 |
| ZSW-380*95 | 500 | 96-160 | 11 | 0 | 4082 | 3800*960 | 3920*1640*1320 |
| ZSW-490*110 | 630 | 120-280 | 15 | 0 | 5352 | 4900*1100 | 4980*1830*1320 |
| ZSW-600*130 | 750 | 400-560 | 22 | 0 | 7800 | 6000*1300 | 6082*2580*2083 |
| ZSW-600*150 | 800 | 500-700 | 30 | 0 | 10190 | 600*1500 | 6086*2660*1912 |
| ZSW-600*180 | 800 | 700-1000 | 37 | 0 | 13750 | 600*1800 | 6310*3262*2230 |
