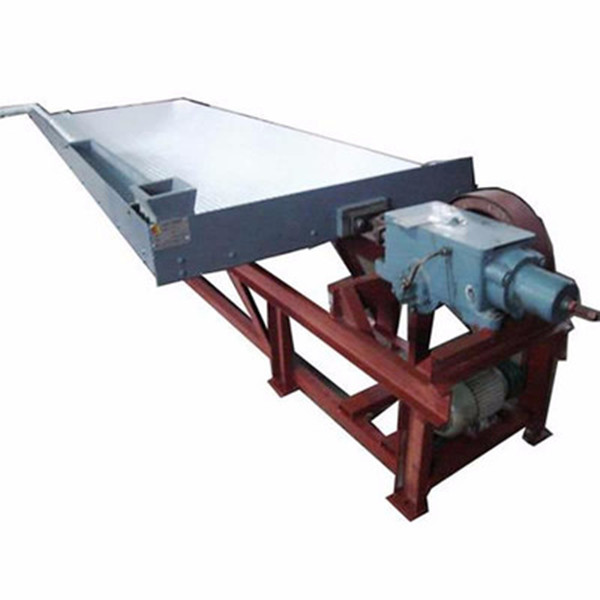

High Beneficiation Efficiency 60t/d Shaking Table Mineral Separation Equipment

Brand Name : ZTIC

Model Number : Customized

Certification : ISO/CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 300 sets per month

Delivery Time : 1-2 months

Packaging Details : regular packing

Product name : shaking table

Max.feeding size : 0.15-2mm

Feeding amount : 10-60t/d

Feeding thickness : 15-30%

Journey : 8-22mm

Frequency : 15-57F

Water quantity : 10-150t/d

Portrait obliquity : 0.92-1.4%

Concentrating square : 7.6

Motor power : 1.1kw

Contact Now

Product Introduction

The shaking table is a gravity dressing machine used for separating fine particles. They are mainly used for various metals such as gold, silver, zinc, tungsten, iron, manganese, lead and coal and heavy metal materials. It is suitable for different grades of materials such as 2-0.5mm, coarse sand of 0.5-0.074mm, fine sand, and slime of 0.074mm. When the beneficiation shaker processes tungsten or tin metal ore materials, the effective recovery range of the equipment is 2-0.22 mm.

High Beneficiation Efficiency 60t/d Shaking Table Mineral Separation Equipment

Features

1. High concentrating ratio, high beneficiation efficiency.

2. Simple operation. It can realize the final concentrating and final tailing only for once.

3. Compared with traditional technology, without reagent.

4. Low energy consumption; high performance.

High Beneficiation Efficiency 60t/d Shaking Table Mineral Separation Equipment

Working principle

1.Mineral separating shaking table is Joint action of an inclined surface of bed with the aid of mechanical flagstone symmetrical reciprocal motion and thin layer incline current of water and so on.

2.It makes the ore grain on the surface of bed the loose lamination, thus enables the mineral separation according to the density different.

High Beneficiation Efficiency 60t/d Shaking Table Mineral Separation Equipment

Technical parameters

Name Unit Grit concentrator table Fine sand concentrator table Sludge concentrator table
Dimensions Length MM 4450 4450 4450
Driving part width MM 1855 1855 1855
Concentrate part width MM 1546 1546 1546
Max.feeding size MM 2 0.5 0.15
Feeding amount T/d 30-60 44489 15-25
Feeding thickness % 25-30 20-25 15-25
Journey MM 16-22 44516 44424
Frequency F 15-48 48-53 50-57
Water quantity T/d 80-150 30-60 44486
Horizontal obliquity Degree 2.5-4.5 1.5-3.5 44198
Portrait obliquity % 1.4 0.92 ----
Table board corner Degree 32-42 40 42
Concentrating square ---- 7.6 7.6 7.6
Table board length ratio ---- 2.6 2.6 2.6
Motor power KW 1.1 1.1 1.1
